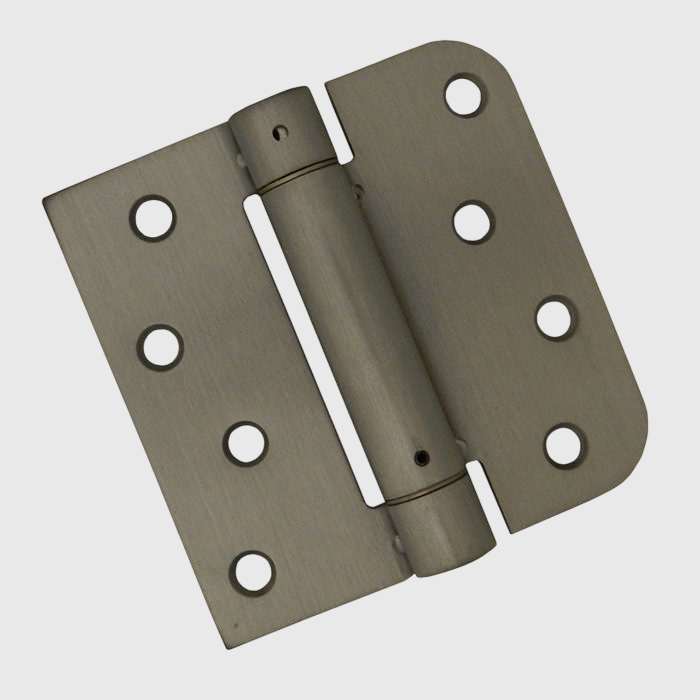

The 4-inch Full Mortise Combination Adjustable Spring Hinge comes in many different color options, and ensures doors close automatically. Thus enhancing security, energy efficiency, and convenience.

Key Features:

• Adjustable Spring Mechanism: Allows users to modify the spring tension, customizing the door’s closing speed and force to meet specific requirements.

• Full Mortise Design: Ensures the hinge is installed flush with the door and frame, offering a clean and seamless appearance.

• Durable Construction: Crafted from high-quality steel, providing longevity and reliable performance.

• Variety of Finishes: Available in multiple finishes, including brushed nickel, satin chrome, and white, allowing for coordination with various interior designs.

• Non-Removable Pin: Enhances security by preventing unauthorized removal of the hinge pin.

Technical Specifications:

• Dimensions: 4 inches in width and height.

• Material: Steel construction.

• Corner Types: Available in square and 5/8-inch radius corners to match different door and frame styles.

• Load Capacity (3 hinges): Supports up to 88 lbs when three hinges are used.

• Caliber/Thickness: Approximately 3/32 inches (2.5 mm).

• Gap: Maintains a 1/8-inch gap between the door and frame.

Applications:

This adjustable spring hinge is ideal for interior doors that require automatic closing, such as:

• Residential Use: Ensuring privacy and energy efficiency in homes by keeping doors closed.

• Commercial Spaces: Maintaining security and climate control in offices, retail stores, and other business environments.

Installation and Maintenance:

Installation is straightforward, with all necessary mounting hardware included. The adjustable spring tension allows for on-site customization to achieve the desired door operation. Regular maintenance involves periodic checks to ensure all components are secure and functioning correctly. The durable construction minimizes the need for frequent upkeep, providing a reliable solution for self-closing door applications.

Availability in the USA:

The 4-inch Full Mortise Combination Adjustable Spring Hinge is available to purchase through our website! We deliver across the USA and Canada!

In summary, the 4-inch Full Mortise Combination Adjustable Spring Hinge combines functionality, durability, and aesthetic appeal, making it an excellent choice for those seeking a dependable self-closing hinge solution in the USA.

Spec Sheet: 4″ Full Mortise Combination Adjustable Spring Hinge
