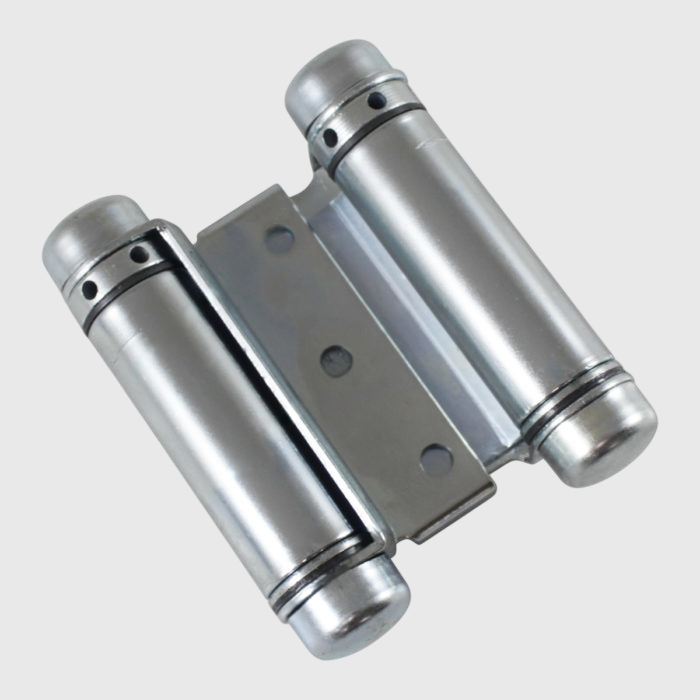

The Bommer 3029 Series Double Acting Spring Hinge is a versatile and durable hardware component designed to allow doors to swing in both directions and return to the closed position. This hinge series is commonly used in various applications across the United States, including restaurants, retail stores, and office spaces, to facilitate smooth traffic flow and accessibility.

Key Features:

• Double Acting Mechanism: Permits doors to open in both directions and automatically return to the closed position, enhancing convenience in high-traffic areas.
• Durable Construction: Made from high-quality steel, ensuring longevity and reliable performance.
• Adjustable Spring Tension: Allows customization of the door’s closing speed and force to meet specific requirements.
• Non-Handed Design: Suitable for both left-hand and right-hand door installations without modification.
• Versatile Installation: The door flange can be mortised or surface-applied to the edge of the door, while the jamb flange is surface-applied to the jamb, providing flexibility in installation.

Technical Specifications:

• Material: Steel
• Sizes and Capacities:


  Hinge Size	Door Thickness	2 Hinges Max Door Weight	2 Hinges Max Door Width	3 Hinges Max Door Weight	3 Hinges Max Door Width	Minimum Door Height
  3″	3/4″ – 1″	35 lbs	2’0″	39 lbs	2’8″	5’0″
  4″	7/8″ – 1 1/4″	60 lbs	2’4″	75 lbs	3’0″	6’8″
  5″	1 1/8″ – 1 1/2″	65 lbs	2’8″	93 lbs	3’0″	6’8″
  6″	1 1/4″ – 1 3/4″	75 lbs	2’8″	107 lbs	3’0″	7’0″
  7″	1 3/8″ – 2″	82 lbs	3’0″	120 lbs	3’6″	7’0″



  *Note: Do not use on doors with hinge edge beveled.

• Sold Individually
• Finishes: Available in various finishes, including primed for painting, allowing customization to match existing décor.

Applications:

The 3029 Series is ideal for medium-duty applications where double-acting doors are beneficial. Common installations include:

• Restaurants and Cafés: Facilitating smooth traffic flow between kitchen and dining areas.
• Retail Stores: Allowing easy access between stockrooms and sales floors.
• Office Spaces: Enhancing movement between interconnected work areas.

Availability in the USA:

For customers in the United States, the Bommer 3029 Series Double Acting Spring Hinge is available through our website for purchase!

Installation and Maintenance:

Installation is straightforward, with all necessary mounting hardware included. The adjustable spring tension allows for on-site customization to achieve the desired door operation. Regular maintenance involves periodic checks to ensure all components are secure and functioning correctly. The durable construction minimizes the need for frequent upkeep, providing a reliable solution for medium-duty double-acting door applications.

In summary, the Bommer 3029 Series Double Acting Spring Hinge combines functionality, durability, and ease of use, making it an excellent choice for those seeking a dependable double-acting hinge solution in the USA.

Spec Sheet: Bommer 3029 Series Double Acting Spring Hinge
