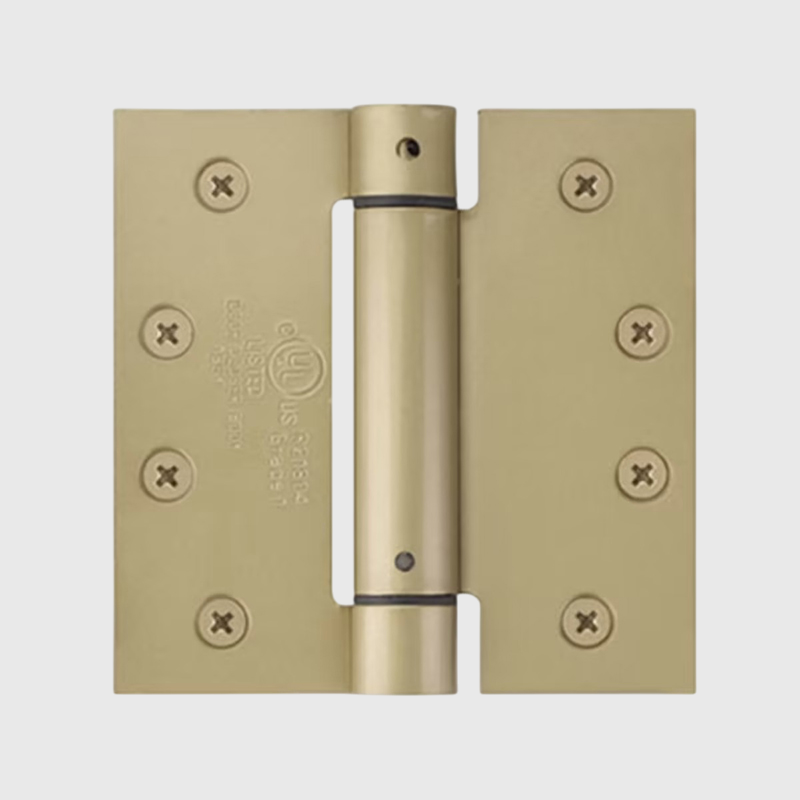

The Emtek Plated Steel UL Listed Spring Hinge is engineered with precision and crafted from high-quality materials. This hinge ensures durability, safety, and aesthetic appeal.

*Hinges sold individually

Key Features:

• Durable Construction: Manufactured from plated steel with a thickness of 0.110 inches, the hinge offers robust performance suitable for doors up to 70 pounds and measuring up to 3 feet wide by 7 feet high.

• UL Listed: This certification signifies that the hinge meets rigorous safety and quality standards, making it suitable for fire-rated door assemblies and ensuring compliance with building codes across the USA.

• Adjustable Spring Mechanism: The hinge features an adjustable spring that allows for customization of the door’s closing speed and tension, enhancing user convenience and safety.

• Versatile Design Options: Available in sizes 3.5″ x 3.5″ and 4″ x 4″, with corner options including square, 1/4″ radius, and 5/8″ radius, the hinge caters to a variety of door configurations and design preferences.

• Aesthetic Finishes: Offered in a range of finishes such as Satin Nickel, Oil Rubbed Bronze, Polished Chrome, Flat Black, Satin Brass, and Polished Nickel, the hinge complements diverse interior and exterior décors.

Technical Specifications:

• Material: Plated Steel

• Thickness: 0.110 inches

• Sizes: 3.5″ x 3.5″ and 4″ x 4″

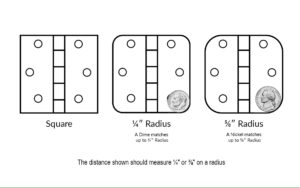

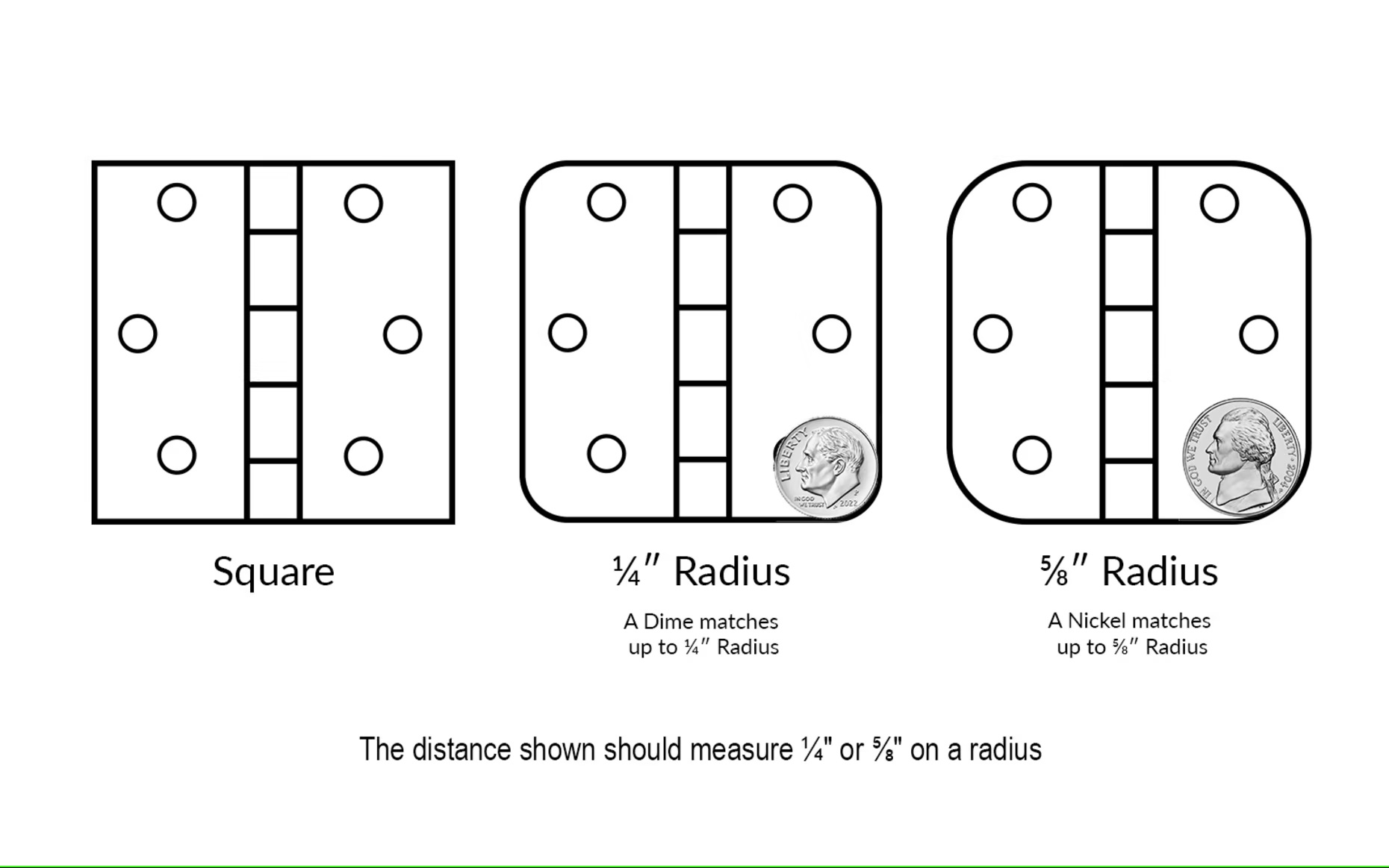

• Corner Types: Square, 1/4″ Radius, 5/8″ Radius

• Load Capacity: Supports doors up to 70 pounds

• Maximum Door Dimensions: 3 feet wide x 7 feet high

• Certification: UL Listed

Applications:

The Emtek Plated Steel UL Listed Spring Hinge is ideal for:

• Residential Use: Ensuring doors leading to garages, basements, or exterior areas close automatically, enhancing security and energy efficiency.

• Commercial Settings: Providing reliable self-closing mechanisms for office doors, storerooms, and other high-traffic areas to maintain privacy and safety.

Availability in the USA:

Emtek products are widely available on our website for purchase. Don’t see the hinge you need? Contact us. We deliver across USA and Canada!

Installation and Maintenance:

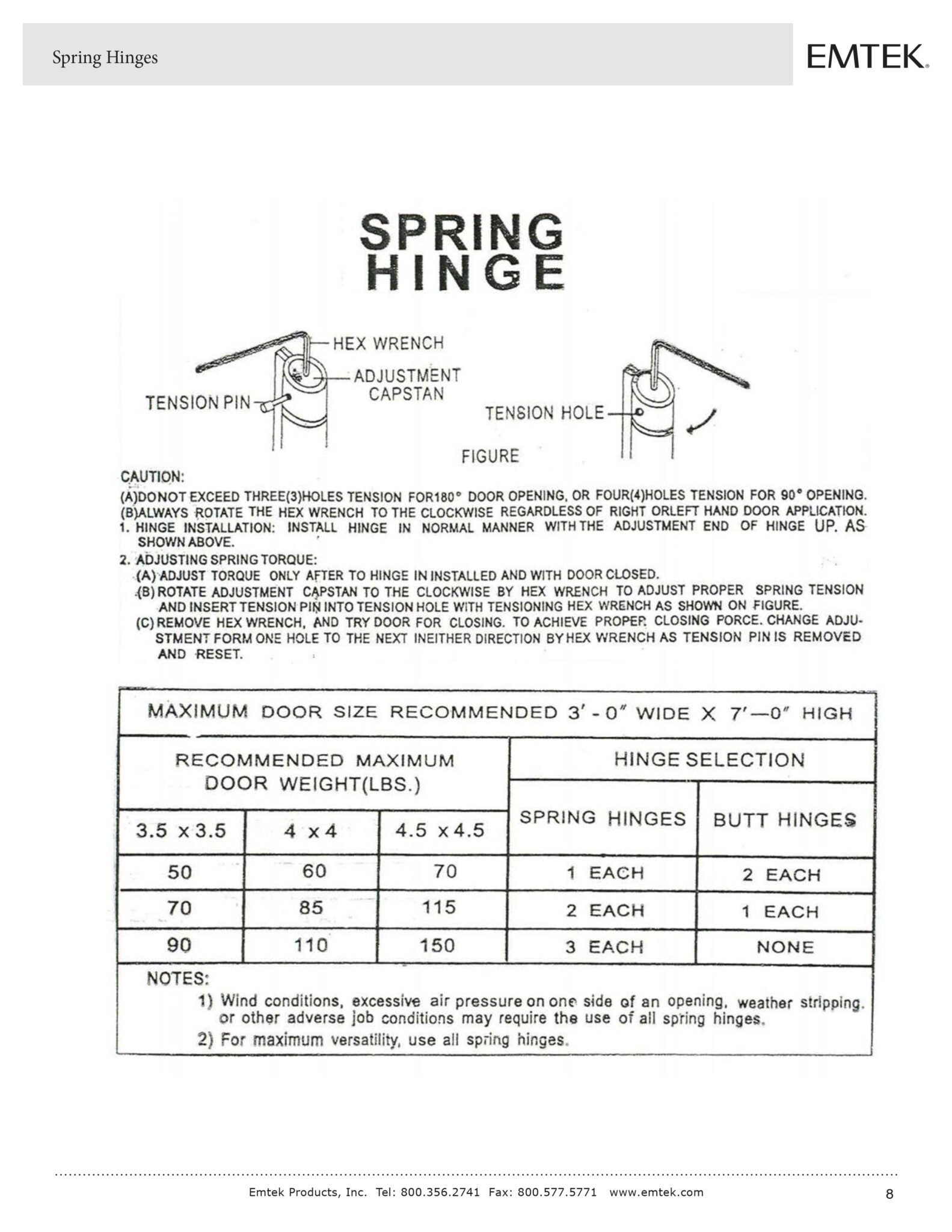

Installation of the Emtek Plated Steel UL Listed Spring Hinge is straightforward, with each hinge supplied complete with screws. The adjustable spring tension allows for on-site customization to achieve the desired door operation. Regular maintenance involves periodic checks to ensure all components are secure and functioning correctly. The durable construction minimizes the need for frequent upkeep, providing a reliable solution for self-closing door applications.

In summary, the Emtek Plated Steel UL Listed Spring Hinge combines functionality, durability, and aesthetic versatility, making it an excellent choice for those seeking a dependable self-closing hinge solution in the USA.
