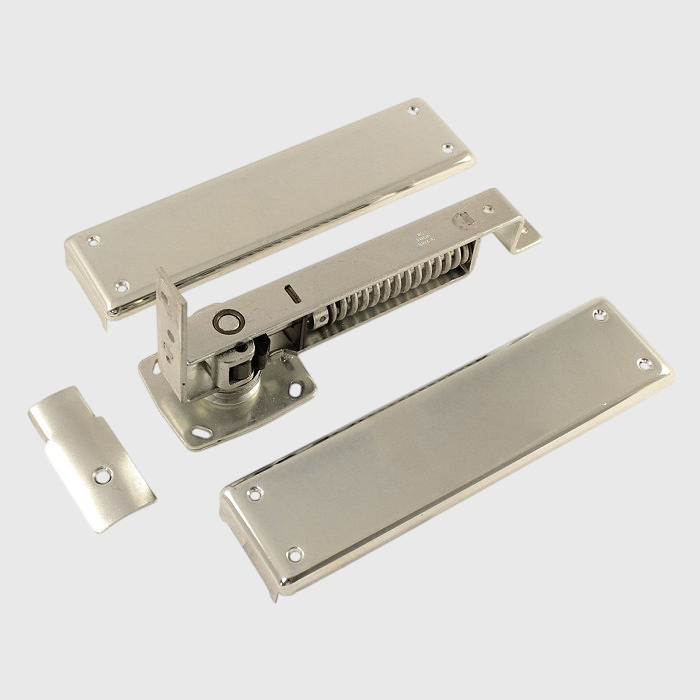

The Richelieu Bommer 7811 Series Medium Duty Horizontal Spring Pivot Hinge allows doors to swing freely in both directions and automatically return to the closed position, ensuring seamless operation and enhanced accessibility.

Key Features:

• Double-Acting Mechanism: Enables doors to swing open in both directions and self-return to the center, providing convenience in high-traffic areas.
• Durable Construction: Crafted with a malleable iron and steel mechanism, ensuring longevity and reliable performance.
• Adjustable Spring Tension: Allows customization of the door’s closing speed and force to meet specific requirements.
• Anti-Friction Bearing: Incorporated to ensure smooth and quiet door operation, reducing wear over time.
• Hold-Open Feature: Designed to hold doors open at approximately 85 degrees, facilitating ease of access when needed.
• Reversible for Left or Right-Hand Installation: The hinge is non-handed, making it suitable for both left-hand and right-hand door applications.

Technical Specifications:

• Material: Malleable iron and steel mechanism
• Finish: Dull zinc plating
• Load Capacity: Supports doors weighing up to 90 lbs
• Door Dimensions: Accommodates doors with a maximum width of 36 inches and thickness ranging from 1-3/8 to 1-3/4 inches
• Mounting: Floor plate installation with included screws
• Compliance: Meets ANSI K82182 standards

Applications:

The 7811 Series is ideal for medium-duty applications where double-acting doors are beneficial. Common installations include:

• Restaurants and Cafes: Facilitating smooth traffic flow between kitchen and dining areas.
• Retail Stores: Allowing easy access between stockrooms and sales floors.
• Office Spaces: Enhancing movement between interconnected work areas.

Availability in the USA:

For customers in the United States, the Richelieu Bommer 7811 Series Medium Duty Horizontal Spring Pivot Hinge is available through our website for purchase. We deliver across USA and Canada!

Installation and Maintenance:

Installation is straightforward, with all necessary mounting hardware included. The adjustable spring tension allows for on-site customization to achieve the desired door operation. Regular maintenance involves periodic checks to ensure all components are secure and functioning correctly. The durable construction and anti-friction bearing design minimize the need for frequent upkeep, providing a reliable solution for medium-duty double-acting door applications.

In summary, the Richelieu Bommer 7811 Series Medium Duty Horizontal Spring Pivot Hinge combines functionality, durability, and ease of use, making it an excellent choice for those seeking a dependable double-acting hinge solution in the USA.

Spec Sheet: Richelieu Bommer 7811 Series Medium Duty Horizontal Spring Pivot Hinge
